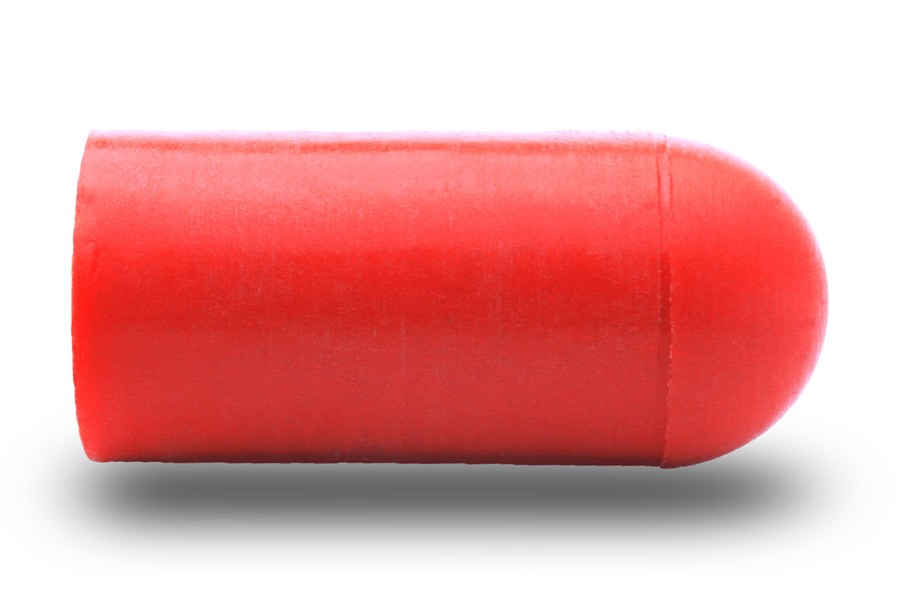

EC Revestimentos em pó Tampas 315° C

Revestimentos em pó Tampas 315° C.

Environmental sustainability Euromask®

Reusable
several times

Learn more

Buy on-line: up to 20% discount

Packages starting from

€ 28

+ VAT €24,64 €22,40

Name your price!

Free Sampling

Choose on our catalogue

Complete data sheet

colour	extrusion trasparent - moulded white - transparent
hardness	60 SHORE A (+/- 4) DIN 53505
breaking strenght:	Mpa 12,0 / 12,0 DIN 53504
elongation strenght:	% 600 / 450 DIN 53504
deformation on elongatione	(22h/175°) (%) 20 / 40 DIN 53517
	Complete data sheet

Dimensions

3D drawing

Special sizes and shapes, other materials

We produce caps with special materials, shapes and sizes on demand in record times. Even without minimum quantity.Ask for

Presale support

More than 20 years field-experience at your complete service; contact our consultants without obligation.
Total disposability both by phone or e-mail for every request or technical advice, helping you in the choice of the best solution among our available products and materials. Contact us

Ask here for sampling

If you don't know the quality of Euromask®'s caps yet, ask for some samplings about the caps you need; it's really free and shipping is always included.

Ask for

Capas: Other shapes and materials on catalogue

Catalogue EC

For Purchase from this Country, please contact Commercial Office +39 02 9691001 or info@euromask-shop.com to have tailored offers - Change

Caps are sold in boxes. Each box can contain from 50 to 1000 caps. (Check Pcs Box table)
More boxes, more saving! With 5 or more boxes, for you Quantity Extra Discount!
Other materials? Size out-of-standard needed? Not sure of what you're buying? Ask for suggest.

Code	Color	Thread	A	C	L	Pcs Box	€ 1 Box	Quantity Discount
EC20	Clear		0,51	3,55	12	1000	28,00	22,40
EC35	purple		0,89	3,43	12,7	1000	31,67	25,33
EC40-500	Clear		1,02	3,32	12,7	1000	28,86	23,09
EC40-750	Clear		1,02	3,30	19,05	1000	36,19	28,95
EC62-750	orange		1,57	3,8	19,05	1000	55,67	44,54
EC70	rusty red	M2	1,78	4,08	25,4	1000	63,99	51,19
EC80-750	grey		2,03	5,07	19,05	1000	67,11	53,69
EC93-500	white		2,36	4,95	12,7	1000	64,84	51,88
EC93-750	white		2,36	4,95	19,05	1000	68,31	54,65
EC100-500	green	M3	2,54	5,13	12,7	1000	65,95	52,76
EC100-750	green	M3	2,54	5,13	19,05	1000	70,99	56,79
EC100	green	M3	2,54	5,13	25,4	1000	80,40	64,32
EC100-1500	green	M3	2,54	5,58	38,1	1000	137,90	110,32
EC109-500	red		2,77	5,81	12,7	1000	66,00	52,80
EC109	red		2,77	5,36	19,05	1000	71,60	57,28
EC125-500	blue		3,18	5,77	12,7	1000	67,11	53,69
EC125-750	blue		3,18	6,22	19,05	1000	76,98	61,59
EC125	blue		3,18	5,77	25,4	1000	85,90	68,72
EC125-1500	blue		3,18	6,22	38,1	1000	143,88	115,10
EC137-1000	green		3,48	6,52	25,4	1000	91,92	73,53
EC140-500	white		3,56	6,6	12,7	1000	80,44	64,35
EC140	white		3,56	6,6	25,4	1000	93,81	75,04
EC148-500	grey	M4	3,76	6,8	12,7	1000	83,36	66,68
EC148-750	grey	M4	3,76	6,8	20	1000	93,71	74,97
EC148	grey	M4	3,76	6,8	25,4	1000	107,37	85,90
EC148-1500	grey	M4	3,76	6,8	38,1	1000	151,51	121,22
EC156-500	yellow		3,96	7	12,7	1000	86,57	69,26
EC156	yellow		3,96	7	25,4	1000	110,41	88,33
EC165-1000	Clear		4,19	7,23	25,4	1000	115,93	92,74
EC172-500	blue		4,37	7,41	12,7	1000	92,05	73,63
EC172	blue		4,37	7,41	25,4	1000	121,00	96,80
EC172-1500	blue		4,37	7,41	38,1	1000	135,93	108,75
EC180	grey		4,57	7,61	25,4	1000	125,28	100,22
EC187-500	red	M5	4,75	7,79	12,7	1000	116,50	93,20
EC187-750	red	M5	4,75	7,79	19,05	1000	124,83	99,86
EC187	red	M5	4,75	7,79	25,4	1000	127,50	102,00
EC187-1500	red	M5	4,75	7,79	38,1	1000	142,89	114,31
EC197-500	Clear		5	8,04	12,7	500	73,48	58,78
EC218	light blue		5,54	8,58	25,4	500	70,55	56,44
EC223-500	pink	M6	5,66	8,7	12,7	500	57,64	46,11
EC223-750	pink	M6	5,66	8,7	19,05	500	62,57	50,05
EC223-1000	pink	M6	5,66	8,7	25,4	500	65,95	52,76
EC223	pink	M6	5,66	8,7	38,1	500	73,63	58,91
EC234-500	green		5,94	8,98	12,7	500	64,64	51,71
EC234-750	green		5,94	8,98	20,0	500	69,92	55,94
EC234	green		5,94	8,98	25,4	500	75,64	60,51
EC234-1500	green		5,94	8,98	38,1	500	88,84	71,07
EC250-500	grey		6,35	9,39	12,7	500	53,33	42,66
EC250	grey		6,35	9,39	25,4	500	76,15	60,92
EC260	red		6,60	9,64	25,4	500	80,55	64,44
EC281	light green		7,14	10,18	25,4	500	81,70	65,36
EC281-2000	light green		7,14	10,18	50,8	500	146,97	117,58
EC295-500	light blue	M8	7,49	10,53	12,7	500	83,47	66,77
EC295-750	light blue	M8	7,49	10,53	19,05	500	87,89	70,31
EC295-1000	light blue	M8	7,49	10,53	25,4	500	92,31	73,85
EC295	light blue	M8	7,49	10,53	38,1	500	85,67	68,53
EC295-2350	light blue	M8	7,49	10,53	59	500	137,07	109,66
EC312	white		7,92	10,96	25,4	500	94,44	75,55
EC312-1500	white		7,92	10,96	38,1	500	132,77	106,22
EC340	grey		8,64	11,68	25,4	500	105,55	84,44
EC355	purple		9,02	12,06	38,1	500	126,54	101,23
EC375-750	yellow	M10	9,52	12,56	19,05	500	88,22	70,58
EC375	yellow	M10	9,52	12,56	25,4	500	99,42	79,54
EC375-1500	yellow	M10	9,52	12,56	38,1	500	136,30	109,04
EC375-1969	yellow	M10	9,52	12,56	50,01	500	172,39	137,92
EC406	red		10,31	13,35	25,4	500	110,57	88,46
EC406-1500	red		10,31	13,35	38,1	500	153,65	122,92
EC437	green		11,1	14,14	25,4	500	130,78	104,62
EC437-2000	green		11,1	14,14	50,8	500	231,69	185,35
EC456-500	pink	M12	11,58	14,62	12,7	500	80,52	64,42
EC456-750	pink	M12	11,58	14,62	19,05	500	105,13	84,09
EC456-1000	pink	M12	11,58	14,62	25,4	500	130,15	104,13
EC456	pink	M12	11,58	14,62	38,1	500	138,50	110,80
EC456-1969	pink	M12	11,58	14,62	50,01	500	226,46	181,17
EC468	orange		11,89	14,93	25,4	500	133,62	106,90
EC468-1500	orange		11,89	14,93	38,1	500	180,38	144,30
EC480-1000	grey		12,19	15,23	25,4	500	124,66	99,74
EC480	grey		12,19	15,23	38,1	500	147,65	118,13
EC500-750	light blue		12,7	15,74	19,05	500	105,69	84,55
EC500	light blue		12,7	15,74	38,1	500	151,62	121,30
EC535-750	yellow		13,59	16,63	19,05	250	71,03	56,81
EC535	yellow		13,59	16,63	38,1	250	87,86	70,29
EC535-3000	yellow		13,59	16,63	76,2	250	202,04	161,63
EC562-659	blue		14,27	17,31	16,74	250	59,61	47,70
EC562	blue		14,27	17,31	38,1	250	90,15	72,12
EC600	Clear	M16	15,24	18,28	38,1	250	91,30	73,04
EC625-750	red		15,88	18,92	19,05	250	94,07	75,26
EC625-1125	red		15,88	18,92	28,58	250	90,34	72,28
EC625-1250	red		15,88	18,92	31,75	250	97,84	78,28
EC625	red		15,88	18,92	38,1	250	102,04	81,63
EC625-2500	red		15,88	18,92	63,5	250	198,41	158,73
EC687	green		17,45	20,49	38,1	250	106,37	85,10
EC687-2500	green		17,45	20,49	63,5	250	172,87	138,29
EC730	purple		18,54	21,58	38,1	250	110,04	88,03
EC750	orange		19,05	22,09	38,1	250	112,77	90,22
EC750-2000	orange		19,05	22,09	50,8	250	206,12	164,89
EC750-3500	orange		19,05	22,09	88,9	250	244,08	195,26
EC780	Clear		19,81	22,85	38,1	250	115,43	92,34
EC812	Clear		20,62	23,66	38,1	250	120,78	96,62
EC845-2844	Clear		21,46	24,5	72,24	250	263,52	210,80
EC875-1000	Clear		22,22	25,26	25,4	250	111,24	89,00
EC875	Clear		22,22	25,26	38,1	250	131,52	105,22
EC937	Clear		23,8	26,84	38,1	250	165,82	132,66
EC970	Clear		24,64	27,68	38,1	250	169,13	135,30
EC1000	Clear		25,4	28,44	38,1	250	171,80	137,43
EC1000-2000	Clear		25,4	28,44	50,8	250	244,65	195,72
EC1062	Clear		26,97	30,01	38,1	100	80,55	64,44
EC1062-2000	Clear		26,97	30,01	50,8	100	101,60	81,28
EC1125	Clear		28,58	31,62	38,1	100	83,23	66,58
EC1187	Clear		30,15	33,19	38,1	100	88,57	70,86
EC1250	Clear		31,75	34,79	38,1	100	99,31	79,44
EC1350	Clear		34,29	37,33	38,1	100	104,70	83,75
EC1380	Clear		35,05	38,09	38,1	100	107,94	86,35
EC1500	Clear		38,1	41,14	25,4	100	110,00	88,00
EC1500-1500	Clear		38,1	41,14	38,1	100	119,52	95,61
EC1500-1750	Clear		38,1	41,14	44,45	50	64,28	51,42
EC1625	Clear		41,28	44,32	50,8	50	138,13	110,51
EC1750	Clear		44,45	47,49	50,8	50	171,80	137,43
EC1875	Clear		47,62	50,66	50,8	50	182,42	145,94
EC2000	Clear		50,8	53,84	50,8	50	214,74	171,80
EC2105	Clear		53,47	56,51	50,8	50	238,36	190,69

The discounted prices are indicated rounding to the nearest cent
