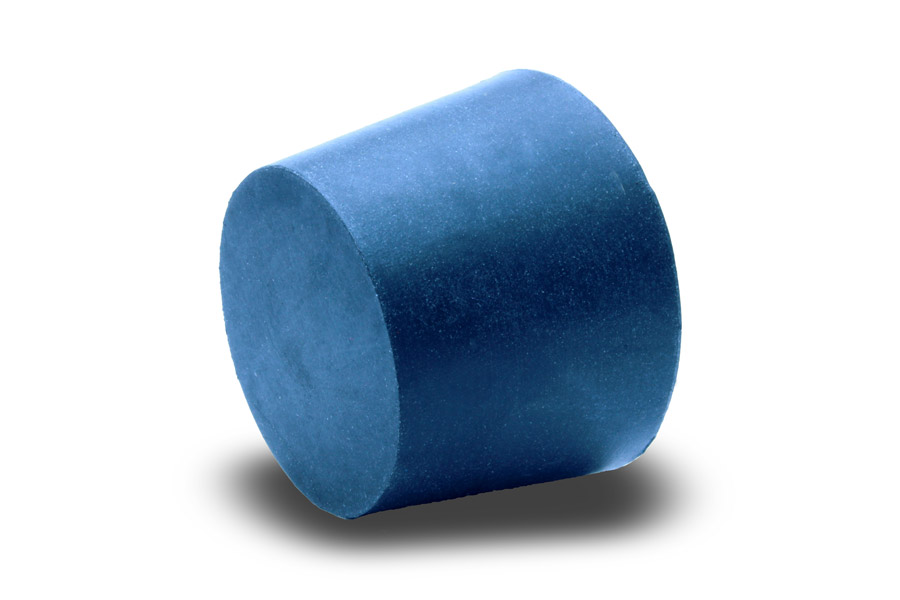

BP Czarne korki z EPDM do 177 ºC

Odpowiednie do malowania plynnego, platynowania, anodowania i piaskowania.

Environmental sustainability Euromask®

Reusable
several times
and with Ø different

Learn more

Buy on-line: up to 20% discount

Packages starting from

€ 3,38

+ VAT €2,97 €2,70

Name your price!

Free Sampling

Choose on our catalogue

Complete data sheet

colour	nero
hardness	60 SHORE A (+- 5) UNI 4916
breaking strenght	Mpa 12,0 UNI 6065
elongation strenght	% 450 UNI 6065
resistenza alla lacerazione	N/mm 30 UNI 4914 C
	Complete data sheet

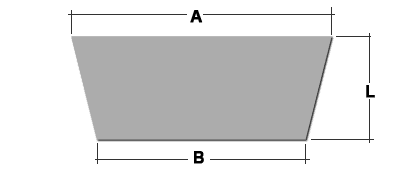

Dimensions

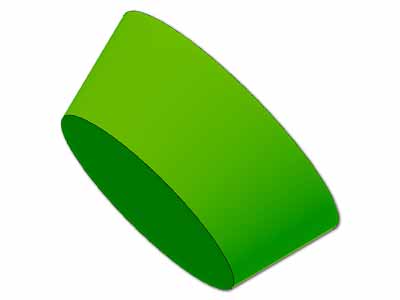

3D drawing

Special sizes and shapes, other materials

We produce plugs with special materials, shapes and sizes on demand in record times. Even without minimum quantity.Ask for

Presale support

More than 20 years field-experience at your complete service; contact our consultants without obligation.
Total disposability both by phone or e-mail for every request or technical advice, helping you in the choice of the best solution among our available products and materials. Contact us

Ask here for sampling

If you don't know the quality of Euromask®'s plugs yet, ask for some samplings about the plugs you need; it's really free and shipping is always included.

Ask for

Korki: Other shapes and materials on catalogue

Catalogue BP

For Purchase from this Country, please contact Commercial Office +39 02 9691001 or info@euromask-shop.com to have tailored offers - Change

Plugs are sold in boxes. Each box can contain from 1 to 1000 plugs. (Check Pcs Box table)
More boxes, more saving! With 5 or more boxes, for you Quantity Extra Discount!
Other materials? Size out-of-standard needed? Not sure of what you're buying? Ask for suggest.

Code	Holes	A	B	L	Pcs Box	€ 1 Box	Quantity Discount
BP63	1	1,6	0,41	15,88	1000	27,74	22,20
BP78	1	1,98	0,51	19,05	1000	31,05	24,84
BP81	1-2	2,54	0,81	15,88	1000	34,65	27,72
BP99	1-3	3,18	0,79	15,88	1000	38,15	30,52
BP100	2-3	3,18	1,6	15,88	1000	41,24	32,99
BP101SH	2-4	4,75	2,79	10,01	1000	41,39	33,12
BP101	2-4	4,75	1,6	15,88	1000	42,83	34,26
BP101XL	2-4	4,75	1,6	19,05	1000	50,17	40,13
BP101SXL	2-4	4,75	1,6	25,4	1000	67,47	53,98
BP102	4-6	6,35	3,18	19,05	1000	48,27	38,62
BP102XL	4-6	6,35	3,18	25,4	1000	66,40	53,12
BP103	6-8	8,71	4,78	15,88	1000	60,55	48,44
BP103XL	6-8	8,71	4,78	25,4	1000	106,94	85,55
BP105	7-9	9,53	6,35	12,7	100	17,78	14,23
BP104	7-9	9,53	6,35	19,05	100	12,68	10,14
BP375XL	5-8	9,53	3,18	31,75	100	33,47	26,77
BP394XL	6-9	10,01	5	48,01	100	37,33	29,87
BP104XL	7-9	11,1	6,35	25,4	100	13,32	10,66
BP106	9-10	11,13	8,74	17,48	100	18,66	14,93
BP000	9-10	11,91	8,74	20,65	100	21,70	17,36
BP000XL	9-11	12,7	7,9	25,4	100	25,62	20,49
BP500XL	5-11	12,7	3,2	50,8	100	52,01	41,61
BP107	9-13	14,3	7,95	25,4	100	18,66	14,93
BP107XL	4-13	15,01	3	35	100	48,28	38,62
BP00	11-14	15,09	10,31	25,4	100	24,67	19,73
BP108	12-14	15,88	11,13	22,23	100	25,12	20,09
BP0	14-16	16,66	12,7	25,4	100	28,81	23,05
BP109	12-16	17,45	11,13	25,4	100	30,70	24,56
BP1	16-18	19	14,27	25,4	100	35,59	28,47
BP2	17-19	19,99	15,88	25,4	100	41,17	32,94
BP2,5	17-20	20,62	15,88	25,4	100	42,65	34,12
BP3	19-22	23,83	18,26	25,4	100	56,50	45,21
BP3,5	18-23	25	17	25,4	100	55,52	44,41
BP4	21-24	25,4	19,84	25,4	100	65,17	52,13
BP4,5	22-25	26,01	19,99	25,4	100	67,39	53,91
BP5	24-26	27	23,01	25,4	100	79,28	63,42
BP5,5	25-27	27,94	23,83	25,4	100	84,87	67,90
BP6	27-30	31,75	26,19	25,4	100	106,24	85,00
BP6,5	28-33	33,35	27	25,4	100	115,30	92,24
BP7	31-35	36,53	30,18	25,4	100	140,64	112,52
BP7,5	32-38	38,89	31,75	25,4	50	78,86	63,08
BP8	34-40	41,28	33,35	25,4	50	88,01	70,40
BP8,5	37-42	42,88	35,71	25,4	50	97,47	77,98
BP9	38-43	44,45	37,31	25,4	50	105,45	84,36
BP9,5	39-45	46,05	38,1	25,4	50	111,73	89,39
BP10	42-49	50,01	41,28	25,4	50	131,46	105,17
BP10,5	45-52	52,4	44,45	25,4	50	147,81	118,24
BP11	49-55	55,96	47,63	25,4	1	3,38	2,70
BP11,5	51-62	62,71	50,01	25,4	1	4,01	3,21
BP12	55-63	63,5	53,98	25,4	1	4,35	3,47
BP13	58-67	68,28	57,94	25,4	1	5,01	4,01
BP13,5	63-74	75,01	61,93	34,93	1	8,12	6,50
BP13,78	72-80	68	82	35	1	11,10	8,88
BP14	77-88	88,9	76,2	38,1	1	12,86	10,29
BP15	83-100	101,6	82,55	38,1	1	16,02	12,82
BP16	90-126	127	88,9	50,8	1	29,57	23,66

The discounted prices are indicated rounding to the nearest cent
